Technical parameters:
Max door weight with 2 hinges：120kg
Maximum opening angle：180°
Minimum thickness of door leaf：40mm

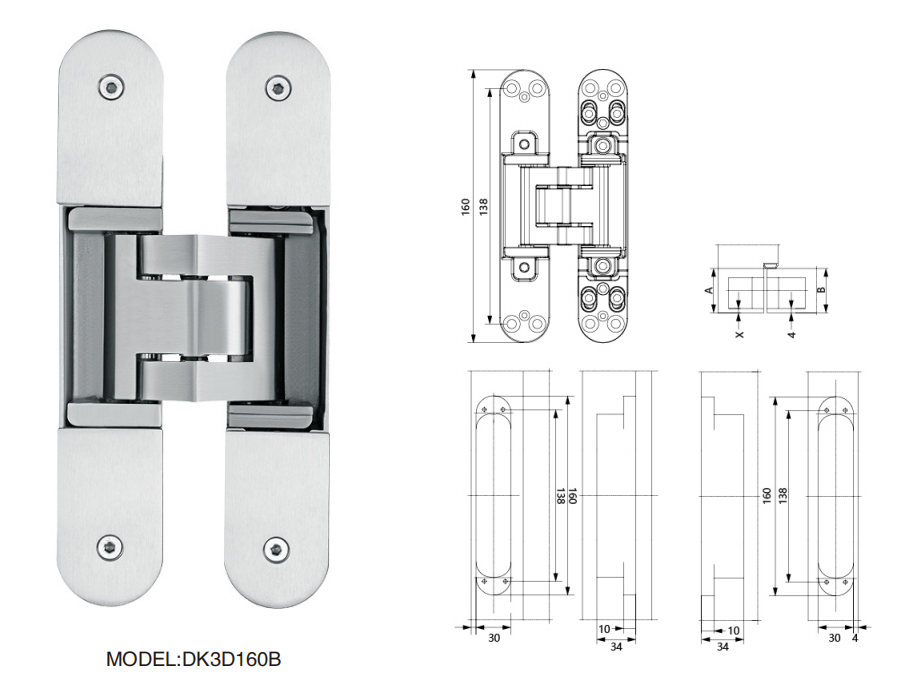

Product size：160x30mm
Main materials：Precision cast stainless steel
It can realize up and down adjustment of±3.0mm, left and right adjustment of 3.5/2.0mm, front and rear adjustment of ± 1.0mm
Surface treatment: Sanding
