Technical parameters:
Maximum load capacity of one hinge：28kg
Maximum opening angle：180°
Minimum thickness of door leaf：25mm

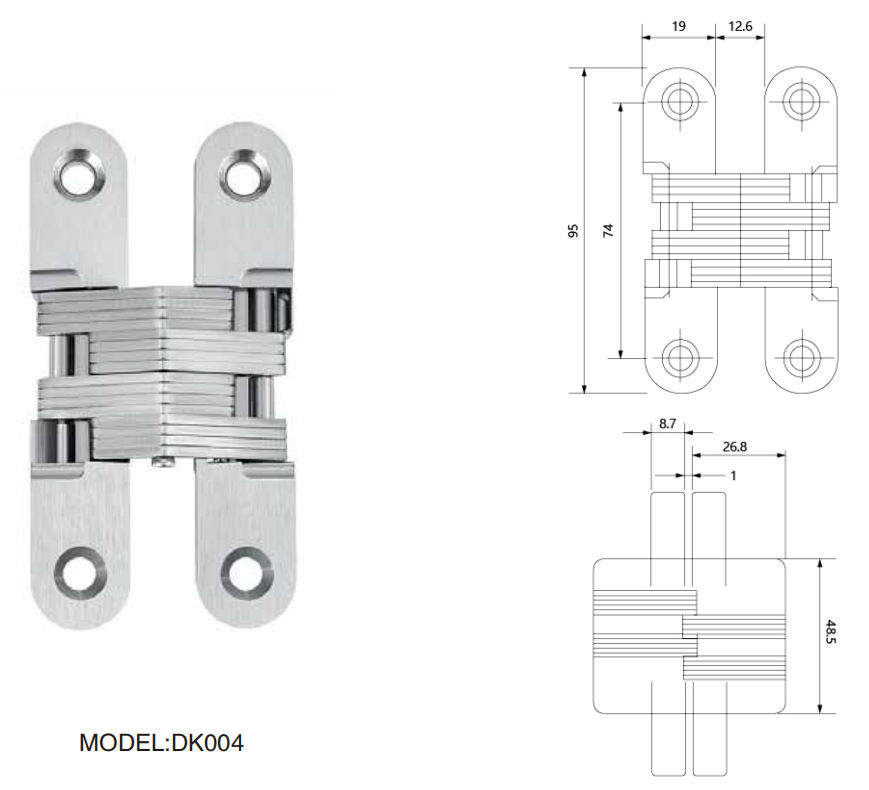

Product size：95x19mm
Main materials：Zinc alloy+stainless steel
Surface treatment:SC、SN、AB、AC、GP、CP
Installation method:Depending on the thickness,height,width and weight of the door,it can be determined according to the actual situation.The standard is 3 for each door,and 4 for the door more than 2300mm high.
